There’s not much left to say, so here are some beauty shots of the KTM RC8 model I’ve been working on for the past 3 months. Read More
Tag: ktm

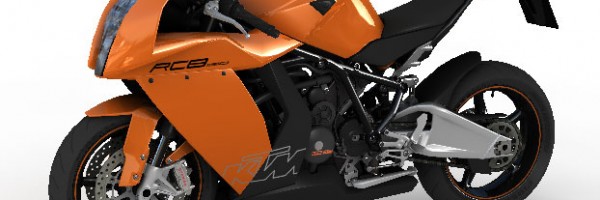

My posts have been a bit sparse lately as I’ve been watching the Firefly series again, capping it off with the movie Serenity. If you’ve seen either of these shows, you’ll understand why I might say the following: “Way I figure, that’s a right fine test render you got there.”
Check out the RC8 tag if you want to see more of this model.
Here they are; the final renders of the RC8 model! My next step will be UV mapping and texturing. Read More
I typically wake up early and do 3D to stay in practice, since I work in the Web industry. This morning I woke up to a PC that wouldn’t boot. It would POST, then detect the CPU, then just sit there on the energy star screen. After much troubleshooting I believe that it is a USB related issue. Unplugging all my USB devices allowed it to continue. After taking stock, it looks like my smart phone being plugged in could have been halting the process, although I have not tested this yet.
Update:
I’ve run a test and the Epic 4G is indeed the cause of this booting halt! Read More

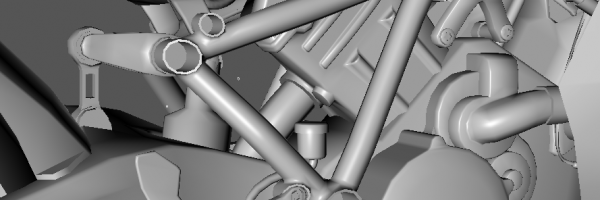

This is the first time I’ve attempted to create smooth transitions between the mounting points and tubes of a trellis frame. If I were to create a rough analogy, the trellis frame would be like a model of the Golden Gate Bridge while the box aluminium frame of most other bikes would be like a country bridge made of two by fours. I’ve got to say that the transitions turned out buttery smooth Read More
One of the pivotal points in a model is when I start to render it. Rendering a model (using the right shadowing and occlusion) will let you know what parts need more detail and what parts should be ignored (in terms of adding more detail).
In the images below you can see that certain areas are starting to be filled in with shadows and don’t really require additional details. Read More
The mirrors on a bike usually help create the silhouette of the machine. The RC8 mirrors are no ordinary kit either. Two things about these mirrors are relatively uncommon. Read More

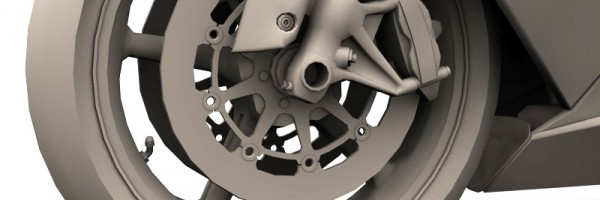

This image is of my latest bit of work on the KTM RC8 model I’m creating. It shows a detailed area of the front wheel, showing the brake caliper, brake rotor and fork end.
The resolution of the caliper itself is a bit high for my liking, but after Read More
At this point it shouldn’t be much of a guessing game if you know your bikes.
This bike is very distinctive, and thus far the most challenging thing for me is the fact that it’s a v-twin and I’m having trouble judging the distance between the engine’s cylinders and the fearing. From certain angles it feels like the gap is too large. Read More
Can you guess what bike it is?
Update: I’ve outed the bike in a more recent post, so we all know it’s the KTM RC8.
